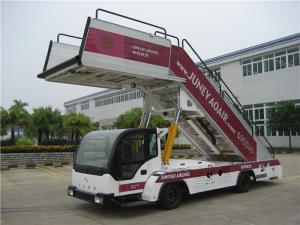

B727 Aircraft Stair Truck

Name: B727 Aircraft Stair Truck
Brand: TECHKING
Price: 1 USD

China B727 Aircraft Stair Truck wholesale

Brand Name : TECHKING

Model Number : TK-eKT48

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : By negociation

Payment Terms : L/C, D/P, D/A, T/T

Supply Ability : 20 Units per Month

Delivery Time : 90 Days

Packaging Details : Nude Pack, Loaded in Flat Rack Container or Shipped by R&R

Name : Electric Passenger Steps

Ground Clearance : 180 mm

Wheelbase : 3000 mm

Platform Service Range : 2200-4800 mm

Minimum Turning Radius : 7540*2200*3540 mm

Gross Vehicle Weight : 7500 kg

Contact Now

TECHKING is one of the largest Ground Support Equipment manufacturer incorporated since 1999.

The TK-KT48 passenger stairs is build upon Techking chassis featuring a superior reliablity and stability. It is in full

comliance with IATA AHM 905, IATA AHM 910, IATA AHM 913, IATA AHM 915, IATA AHM 916, IATA AHM

920, SAE-ARP836A and MH/T6029-2003 etc.

Suitable for medium to large aircraft such as A300, A310, A320, A340, A380, B727, B737, B757, B767, B747 etc.

Dimensions

Performance Data

Overall Dimensions

7540*2200*3540 mm

Maximum Speed

45 km/hr

Wheelbase

3000 mm

Platform Service Range

2200-4800 mm

Front Wheel Tread

1824 mm

Number of Stairs

Rear Wheel Tread

1950 mm

Stair Width

1290 mm

Minimum Turning Radius

6350 mm

Ground Clearance

180 mm

Gross Vehicle Weight

7500 kg

Platform Dimensions

2750-3150*1700

Standard Features

ISUZU 62 KW Diesel Engine

Okamaru Automatic Transmission

Argo Hytos Hydraulic Directional Valve Block

Dual-circuit Hydraulic Brake System

Tires:7.00-12

4 Hydraulic Stabilizers

TECHKING Special Designed Leaf Spring Suspension

Standard Lightings

Adequte Warning Lights/Indicators

Safety Features

Faulty Operation Prevention System

Emergency Stop Button

Independent Dual Brake System

Emergency Brake

Eemergency Steering

Emergency Stabilizer Withdraw

Emergency Stair Descend

Emergency Platform Descend

Electrical Emergency Hydraulic Pump

Manual Emergency Hydraulic Pump

Highlights

Patented arch wide view driving cabin, facilitating an easier view when operating, avoiding fault operation.

Diagram & Details

Dual-circuit Hydraulic Brake System

Tires:7.00-12

Adopting TECHKING special chassis, featuring low gravity,higher load capacity and more safety operation. Allowing 3

people on each step and 16 people on platform, superior than standards' requirements of 2 people on each steps and 8

people on platform.

Equipped with 3mm thick non-skid aluminum alloy steps with aluminium alloy side plate, ensuring elegant desgn as

well as a safer boarding experience.

Diagram & Details
