Armored CIT Use Reinforced Chassis Bulletproof, 4G, GPS And Monitoring System
Description:
1. Protection Scheme
1.1 Bulletproof rating: B6 on all sides, B4 on top (bullet-proof on five sides)
Ammunition type: 7.62mm × 51 (M80); gun type: .308 rifle; caliber: 7.62; full ammo length: 71.12mm; charge amount: 3.05g; warhead structure: pointed, cone bottom, steel core, armor ; Bullet speed: 820 ~ 840m / s; shooting distance: 10m; effective number of bullets: 3 rounds.
1.2 Bulletproof range:
Bulletproof on all sides of the vehicle (front, rear, left and right), bulletproof of fuel tank, battery and water tank;
1.3 Bulletproof materials:
Bulletproof steel plate, bulletproof glass;
2. Configuration scheme
A. Standard configuration
- The cab, escort compartment and banknote box are connected, the cab takes 2 people, and the escort compartment and banknote compartment take 7 people;

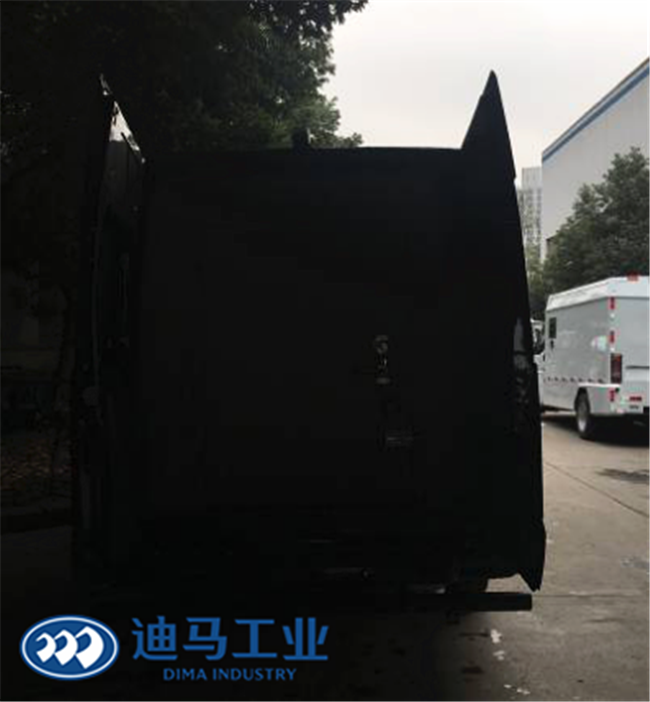

- The door layout of the whole vehicle: the left and right doors of the cockpit, the left and right sides of the middle of the escort compartment are opened, and the single open door is set at the rear of the banknote compartment;
- Door lock of the banknote transport compartment: the tail door of the banknote transport compartment is a gear-driven multi-tethered world lock;
- Install manual skylight on the top of escort cabin;
- Install a color dual-lens monitoring system, one lens to monitor the inside of the banknote compartment, and one lens to monitor the rear of the vehicle, the monitoring screen is installed above the front block or on the instrument panel;
- Independent air conditioning before and after installation;
- Other
Main technical parameters
| Model | DMT5047XYCEL1-AM |
| Chassis/Manufacture company | JX5040XXYTD-L6/JMC |
| Drive system | 4×2 |
| Overall dimensions L×W×H mm | 4963 / 5160(with front bumper)/ 5260(with front and rear bumper)×1974 ×2161(Medium and low roof short vehicle body) 5260 / 5460(with front bumper)/ 5560(with front and rear bumper)×1974×2161(Medium and low roof long vehicle body) 4963 / 5160(with front bumper)/ 5260(with front and rear bumper)×1974 ×2398(Medium roof short vehicle body) 5260 / 5460(with front bumper)/ 5560(with front and rear bumper)×1974 ×2398(Medium roof long vehicle body) |
| Banknote box dimensions L×W×H mm | 1130×1694×1401/1250×1694×1401(Single-layer single-open rear door)(Medium and low roof short vehicle body) 1430×1694×1401/1530×1694×1401(Single-layer single-open rear door)(Medium and low roof long vehicle body) 1130×1694×1633/1250×1694×1633(Single-layer single-open rear door)(Medium roof short vehicle body) 1430×1694×1633 /1550×1694×1633(Single-layer single-open rear door)(Medium roof long vehicle body) |
| Volume | 2.7/3.0(Single-layer single-open rear door)(Medium and low roof short vehicle body) 3.4/3.7(Single-layer single-open rear door)(Medium and low roof long vehicle body) 3.1/3.5(Single-layer single-open rear door)(Medium roof short vehicle body) 4.0 /4.3(Single-layer single-open rear door)(Medium roof long vehicle body) |
| Curb weight (kg) | 2490(short vehicle body) 2600(long vehicle body) |
| Gross vehicle weight (kg) | 3550 |
| Rated load (including the crew) (kg) | 1060(short vehicle body), 950(long vehicle body) |
| Rated passengers | 3+3,2+3 |
| Engine model | DURATORQ4D226H high pressure common rail, supercharged and intercooled, diesel engine |
| Displacement (L) | 2.198 |
| Maximum power(Kw/r/min) | 103/3750 |
| Maximum torque(N.m/r/min) | 360/1500-2000 |
| Tread(Front/Rear)(mm) | 1745/1700 |
| Wheelbase(mm) | 2933 |
| Minimum ground clearance(mm) | 165 |
| Maximum speed (Km / h) | 145 |
| Tire specifications | 215/75R016LT |
| Bulletproof level | B4-B6 |
